PULSE Door Operators


Innovative. Powerful. Reliable.

iControls® sets the standard for Direct Drive DC door openers performance. Easy to install, set up and troubleshoot, these high-cycle operators are loaded with features, and remarkably reliable. Our PULSE operators will add high-speed efficiency to your counter-balanced sectional, sliding or rolling steel doors.


feature image

High Voltage, High Torque DC Motors

We use 90V and 180V horsepower rated motors ranging from 3/8 HP to 3 HP, combined with gearboxes available in multiple sizes and ratios to ensure optimal strength and speed for your application.

feature image

Built-in Battery Backup

In the event of an outage, the included batteries provide power for multiple door cycles. Built on a separate circuit, the PULSE battery backup will work even if a board has been damaged, setting it apart from all other systems that rely on the full functionality of their printed circuit board. A built-in trickle charger ensures that the batteries are always charged and ready.

feature image

Adjustable Soft Start/Soft Stop

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

feature image

Programmable Open & Close Speeds

The PULSE operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second, however can be adjusted to best suit the application. Simple menu settings allow for selecting speeds from 1 (slowest) to 5 (fastest).

feature image

Intelligent Force Monitoring

Should the door hit an obstruction or become jammed, the system will sense the change in force and stop the open operation or reverse the close operation to avoid further damage. This integrated feature virtually eliminates the need for third-party safety edges.

Meet the PULSE Series

Our range of door opener models is designed to fulfill the specific needs of your application.
PULSE 100 Series
PULSE 100 Series
    PULSE 200 Series
    PULSE 200 Series
      PULSE 500 Series
      PULSE 500 Series
        PULSE 300 Series
        PULSE 300 Series
          PULSE 400 Series
          PULSE 400 Series

            Check your PULSE

            Compare features to find the most suitable commercial door operator for your application.
            PULSE 100 Series
            Economy series.
            Pre-wired for fast installation.
            Ideal for narrow spaces.
            Door Type
            Sectional
            Rolling Steel/Grill
            Fabric
            Sliding
            Springless
            Door Specs
            Size (ft2) - Up to 200
            Weight (lb.)* - Up to 1000
            Motor
            3/8, 1/2 HP
            Display
            LCD
            Face-Level Display
            Features
            Built-in Battery Backup
            Adjustable Soft Start/Soft Stop
            Programmable Open & Close Speeds
            Intelligent Force Monitoring
            Door Balance Check
            Closing Timer from 1-99s
            Reliable & Precise Encoder
            Dynamic Braking
            Door Lock Activation
            Weather-Protect Option
            Duty Cycle - Maximum 120 cycles/hour
            Warranty - 2 years/250K cycles
            Standards
            UL 325 Compliant
            PULSE 200 Series
            Economy series.
            Ideal for high-cycle dock doors.
            Door Type
            Sectional
            Rolling Steel/Grill
            Fabric
            Sliding
            Springless
            Door Specs
            Size (ft2) - Up to 200
            Weight (lb.)* - Up to 1000
            Motor
            3/8, 1/2 HP
            Display
            LCD
            Face-Level Display
            Features
            Built-in Battery Backup
            Adjustable Soft Start/Soft Stop
            Programmable Open & Close Speeds
            Intelligent Force Monitoring
            Door Balance Check
            Closing Timer from 1-99s
            Reliable & Precise Encoder
            Dynamic Braking
            Door Lock Activation
            Weather-Protect Option
            Duty Cycle - Maximum 120 cycles/hour
            Warranty - 2 years/250K cycles
            Standards
            UL 325 Compliant
            PULSE 300 Series
            Coming Soon
            Door Type
            Sectional
            Rolling Steel/Grill
            Fabric
            Sliding
            Springless
            Door Specs
            Size (ft2) - Up to 500
            Weight (lb.)* - Up to 1580
            Motor
            1/2, 3/4, 1 HP
            Display
            LCD
            Face-Level Display
            Features
            Built-in Battery Backup
            Adjustable Soft Start/Soft Stop
            Programmable Open & Close Speeds
            Intelligent Force Monitoring
            Door Balance Check
            Closing Timer from 1-99s
            Reliable & Precise Encoder
            Automated Dynamic Braking
            Door Lock Activation
            Weather-Protect Option
            Duty Cycle - Continuous duty
            Warranty - 2 years/1M cycles
            Standards
            UL 325 Compliant
            PULSE 400 Series
            Coming Soon
            Door Type
            Sectional
            Rolling Steel/Grill
            Fabric
            Sliding
            Springless
            Door Specs
            Size (ft2) - Up to 800
            Weight (lb.)* - Up to 2200
            Motor
            1, 2, 3 HP
            Display
            LCD
            Face-Level Display
            Features
            Built-in Battery Backup
            Adjustable Soft Start/Soft Stop
            Programmable Open & Close Speeds
            Intelligent Force Monitoring
            Door Balance Check
            Closing Timer from 1-99s
            Reliable & Precise Encoder
            Automated Dynamic Braking
            Door Lock Activation
            Weather-Protect Option
            Duty Cycle - Continuous duty
            Warranty - 2 years/1M cycles
            Standards
            UL 325 Compliant
            PULSE 500 Series
            The Original series.
            High-performance operator, ideal for continuous duty, high-cycle doors.
            Door Type
            Sectional
            Rolling Steel/Grill
            Fabric
            Sliding
            Springless
            Door Specs
            Size (ft2) - Up to 500
            Weight (lb.)* - Up to 1580
            Motor
            1/2, 3/4, 1 HP
            Display
            LCD
            Face-Level Display
            Features
            Built-in Battery Backup
            Adjustable Soft Start/Soft Stop
            Programmable Open & Close Speeds
            Intelligent Force Monitoring
            Door Balance Check
            Closing Timer from 1-99s
            Reliable & Precise Encoder
            Programmable Dynamic Braking
            Door Lock Activation
            Weather-Protect Option
            Duty Cycle - Continuous duty
            Warranty - 2 years/1M cycles
            Standards
            UL 325 Listed

            How Heavy Is Your Door?

            Our commercial door operators come in various motor and gearbox sizes and ratios to meet your weight needs.
            PULSE SeriesMotor HPGearbox SizeGearbox RatioShaft SizeMax Door WeightAction
            PULSE 100Up to 1/250Up to 50:11"Up to 1000 lb.Learn more
            PULSE 200Up to 1/250Up to 50:11"Up to 1000 lb.Learn more
            PULSE 300Up to 1Up to 75Up to 60:1Up to 1 1/4"Up to 1580 lb.Coming Soon
            PULSE 400Up to 3Up to 90Up to 60:1Up to 1 1/4"Up to 2200 lb.Coming Soon
            PULSE 500Up to 1Up to 75Up to 60:1Up to 1 1/4"Up to 1580 lb.Learn more

            Note: Maximum door weight based on counter balanced standard lift sectional door drum capacities.

            Operator lift capacity generally exceeds drum capacity.

            Controls & Accessories

            Upgrade your setup with accessories designed to boost safety, efficiency, and convenience.
            Push Button Stations
            Push Button Stations
              Remote Activation Devices
              Remote Activation Devices

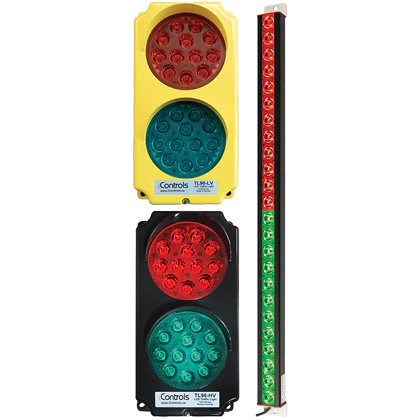

                LED Stop & Go Traffic Lights
                LED Stop & Go Traffic Lights
