PULSE 500 Series

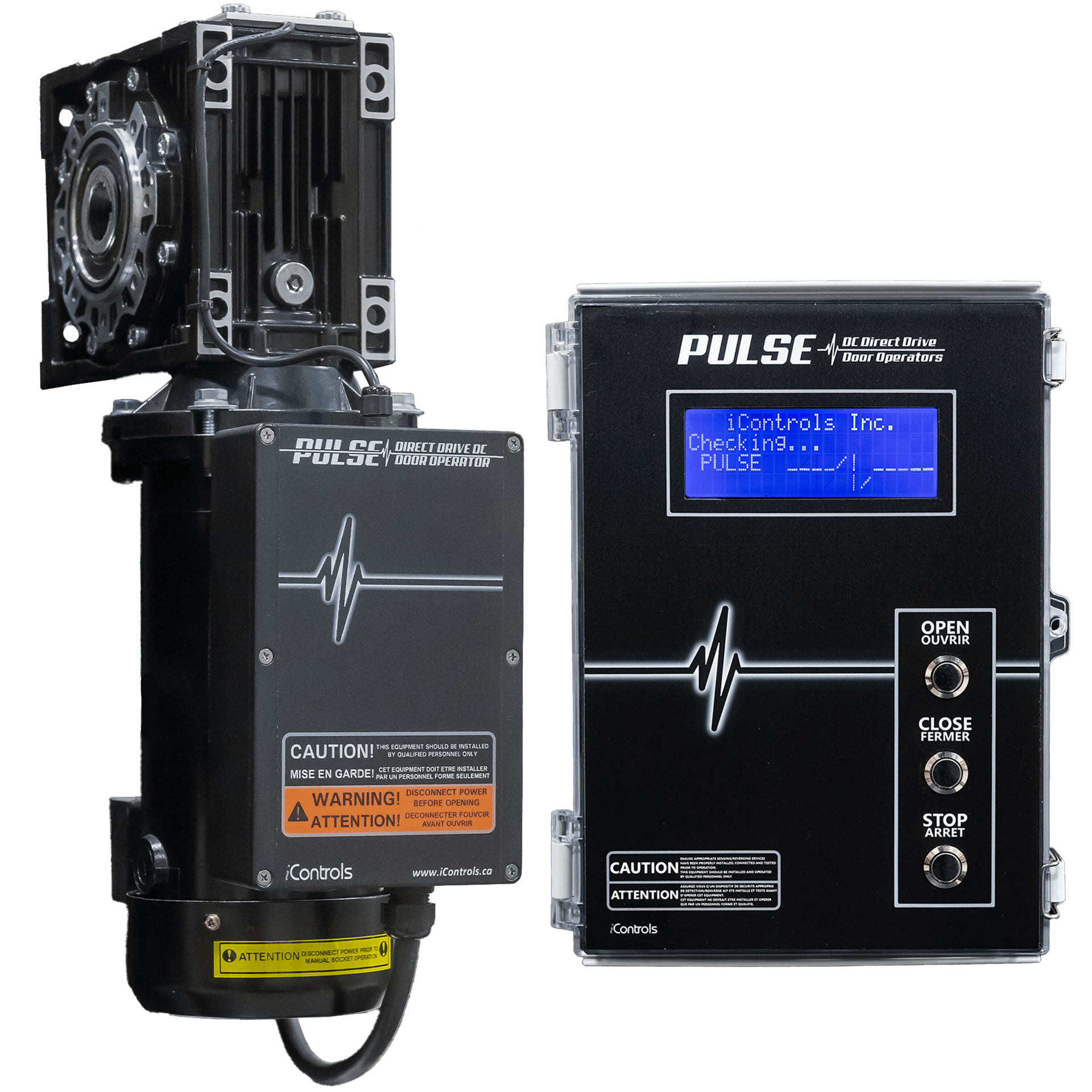

PULSE 500 Series Commercial Door Operator

PULSE 500 Series

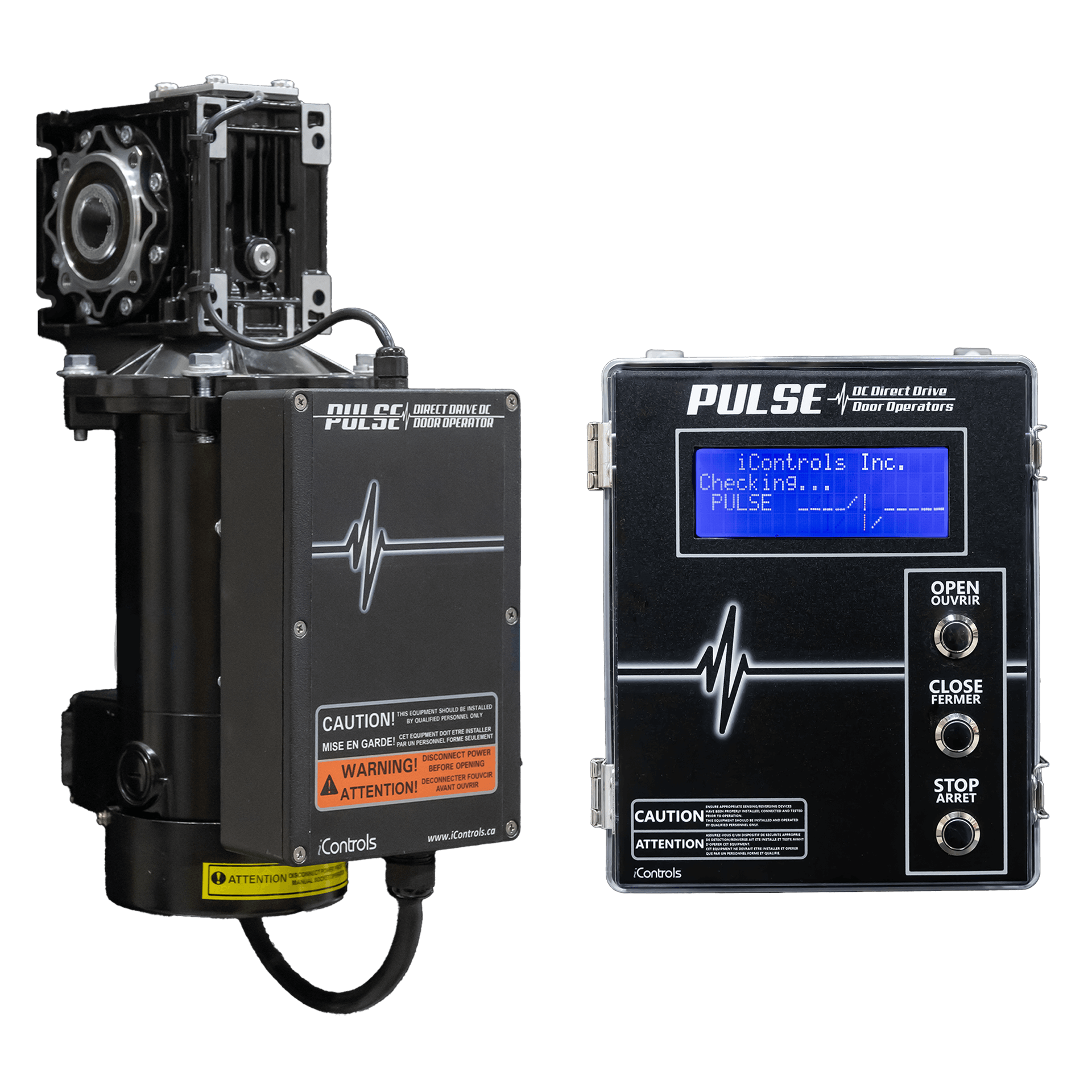

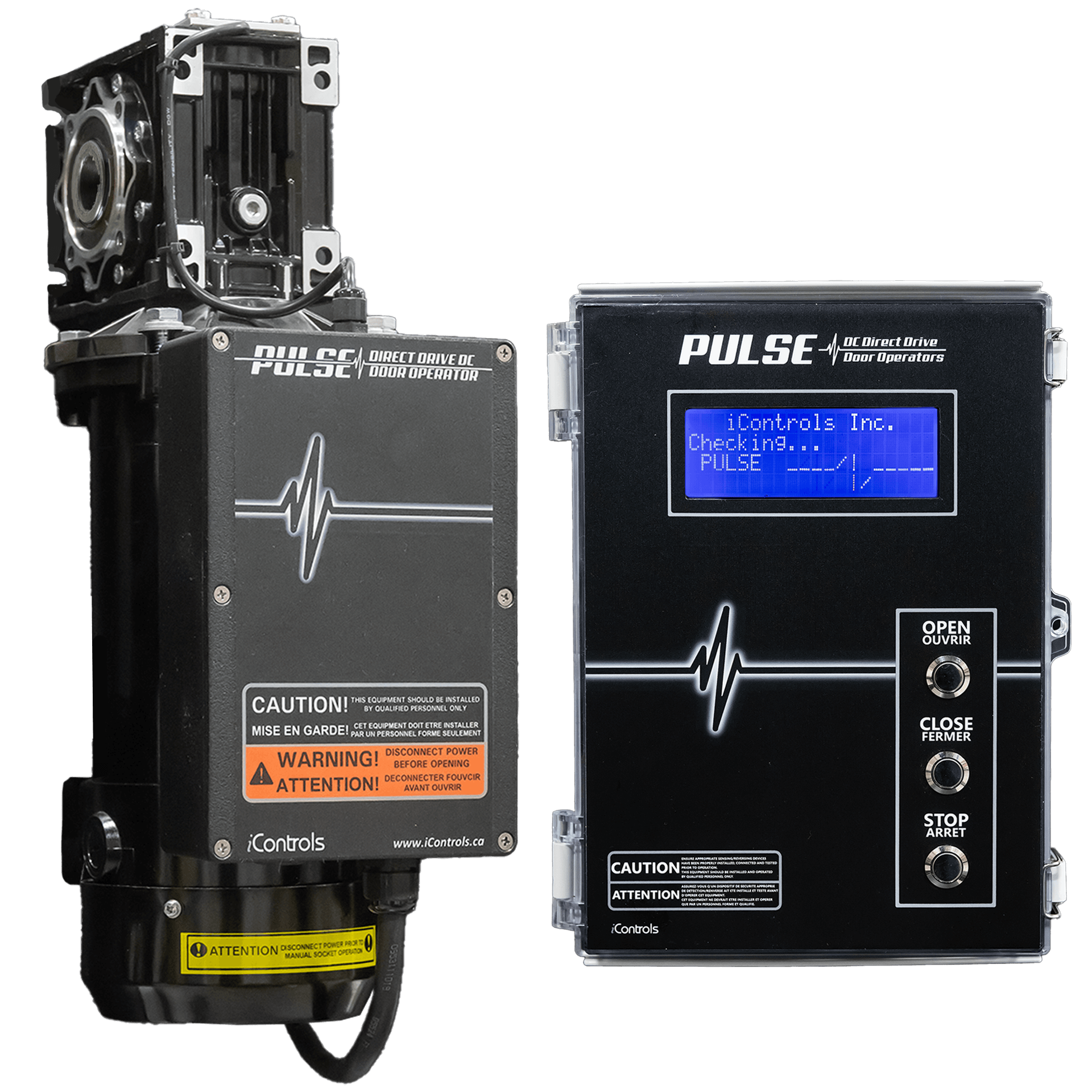

The PULSE 500 Direct Drive DC door operators set the standard for DC shaft-mount commercial door operator performance. Easy to install, set up, and troubleshoot, these high-cycle operators are loaded with features, remarkably reliable, and very simple to use. They will add high-speed efficiency to your counter-balanced sectional or rolling steel balanced door.
Featuring patented technology: U.S. Patent No. 11105138.
PULSE 500 Series

Features

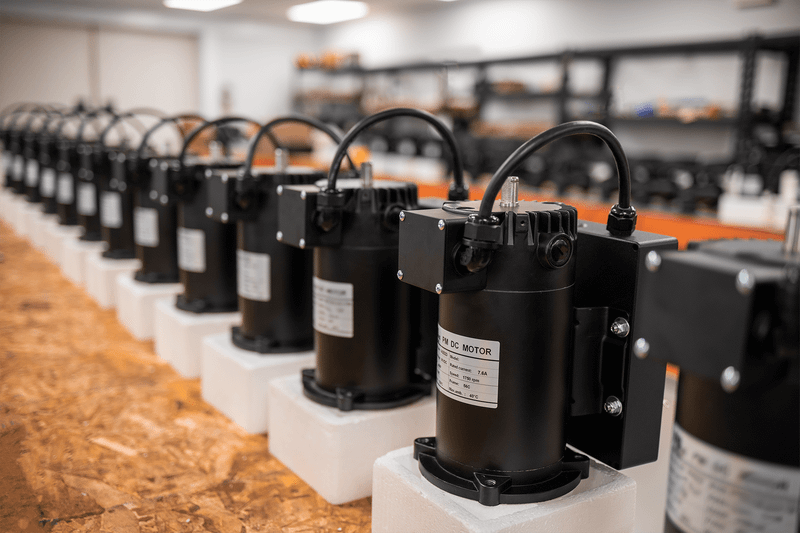

High Power DC Motors

We use 90V horsepower rated motors ranging from 1/2 HP to 1 HP, combined with gearboxes available in multiple sizes and ratios to ensure optimal strength and speed for your commercial applications.

High Power DC Motors

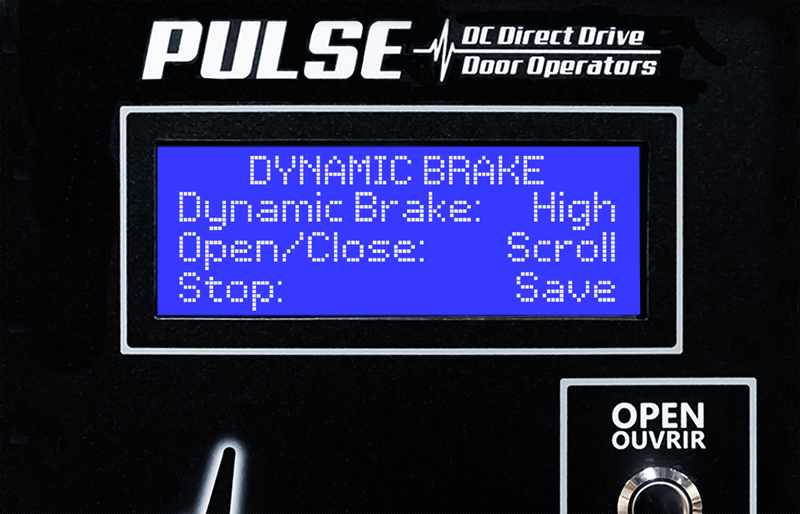

Programmable Dynamic Braking

Not every door can be perfectly balanced. To combat high inertia, use the dynamic braking feature to aid in deceleration and smooth out the soft stop as the door closes.

Programmable Dynamic Braking

Built-in 24V Battery Backup

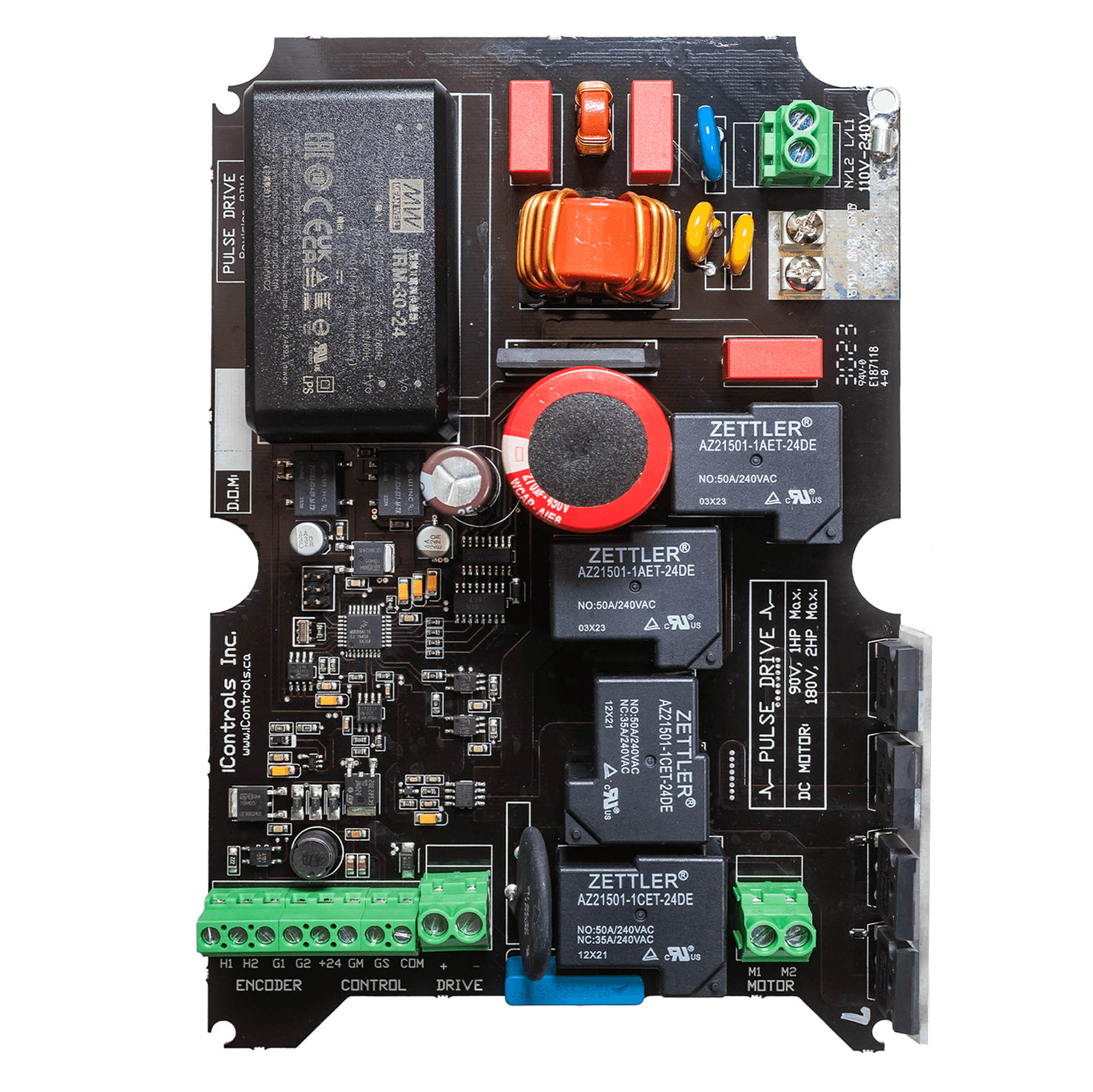

In the event of an outage, the included batteries provide power for multiple door cycles. Built on a separate circuit, the PULSE battery backup will work even if a board has been damaged, setting it apart from all other systems that rely on the full functionality of their printed circuit board. A built-in trickle charger ensures that the batteries are always charged and ready.

Our built-in battery backup system eliminates the need for a chain-hoist, but one can still be ordered as an option if desired.

Built-in 24V Battery Backup

Adjustable Soft Start/Soft Stop

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

Adjustable Soft Start/Soft Stop

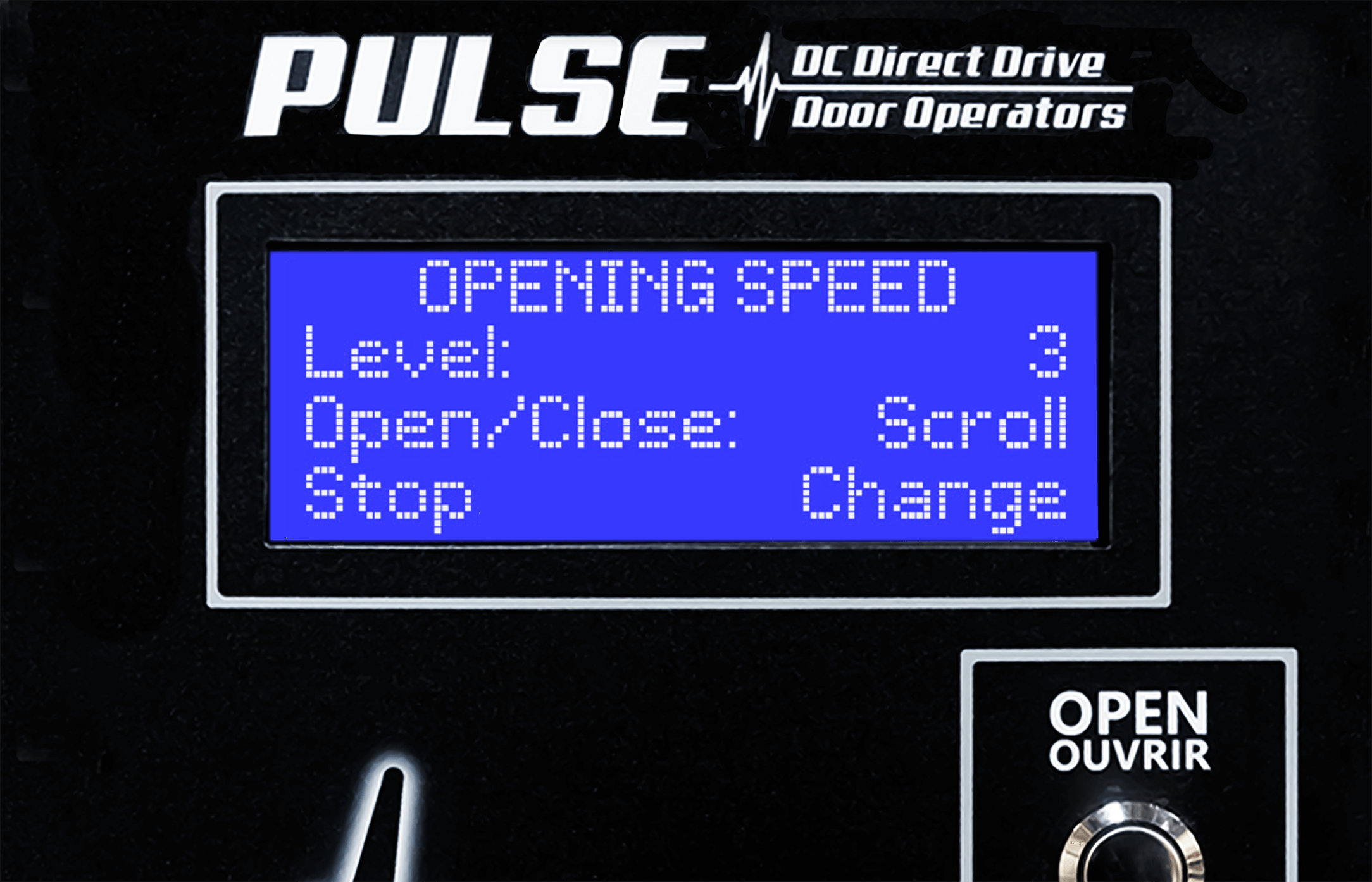

Programmable Open & Close Speeds

The PULSE door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second, however can be adjusted to best suit the application. Simple menu settings allow for selecting speeds from 1 (slowest) to 5 (fastest).

Programmable Open & Close Speeds

Intelligent Force Monitoring

Should the door hit an obstruction or become jammed, the system will sense the change in force and stop the open operation or reverse the close operation to avoid further damage. This integrated feature virtually eliminates the need for third-party safety edges.

Intelligent Force Monitoring

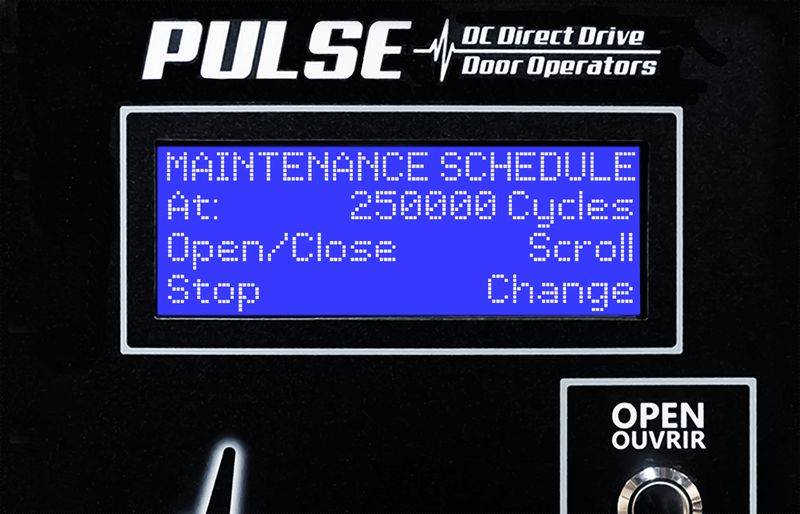

Maintenance Schedule

Set a maintenance reminder that is displayed on the LCD after a selected number of door operator cycles. Factory default is set to 250K cycles (for motor brush replacement), but can be modified in 100K increments. Use this function to initiate a maintenance program that can ensure the long-term health of your commercial door and operator.

Maintenance Schedule

Programmable Closing Timer

Set your door to automatically close after a selectable 1 - 99 seconds open delay.

Programmable Closing Timer

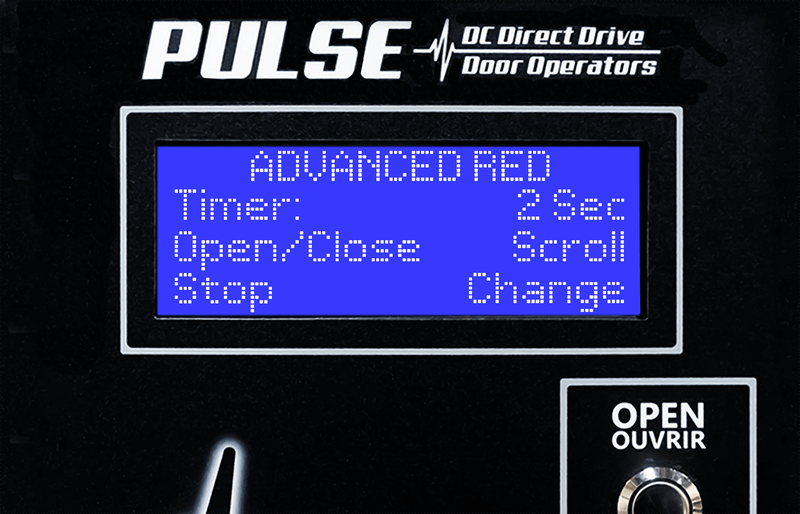

Door Close Warning

When the closing timer is on, this feature will activate the red light on your traffic signal in advance of the door closing. Programmable from 1 to 9 seconds, use this safety feature as an early warning for your workers. Best used with iControls®’s LED Stop & Go traffic lights.

Door Close Warning

Door Balance Check

PULSE door openers feature a balance check menu option. Once selected, the door automatically moves through one complete cycle and reports on the LCD the difference in force required to open the door versus closing it. Use this data to verify proper door balance without needing to remove the operator, and take the guesswork out of door balancing. A properly balanced door will extend the life of the door springs and maximize battery backup performance.

Door Balance Check

Reliable & Precise Encoder

Mounted on the top of the gearbox, the encoder allows for easy, fool-proof limit setup, and easy left or ride side mounting of the operator. It also facilitates advanced functionality of the door including soft start/soft stop, dual open limits and motion monitoring - if the door stops moving during its cycle, the encoder senses the lack of motion and halts operation to avoid any added damage to the operator and/or door. The encoder will also monitor the position of the door when the operator is being used in battery backup mode - no need to reset the encoder when the power returns.

Chain-Hoist Option

A manual chain-hoist option is available for redundant emergency backup operation. Once engaged via a lever at floor level, all electrical operation (battery or power) is disabled for operator safety. Default factory installation of the chain-hoist is on the right-hand side of the operator, but it can be converted to the left-hand side on request.

Weather-Protect Option

iControls® recommends an available upgrade for all Weather Resistant applications. Standard PULSE operator motors are rated IP44, and could be vulnerable to water ingress. Furthermore, reflective photo-eye sensors can be affected by condensation on the reflector, preventing reliable operation in such conditions. iControls® offers a cost-effective weather-resistant upgrade that seals ingress points on the motor junction box, and includes a NEMA 4X through-beam sensor in place of a reflective photo-eye.
To order the weather-protect option, add the suffix “-WP” to the door operator part number.


Specifications

Power

  • Motors available in 1/2, 3/4 and 1 HP

Voltage

  • 110V–240V AC, 1Ph

Safety Standards

  • UL 325 Listed for Commercial Applications – File E516991

Compatible Door Types

  • Sectional
  • Rolling Steel/Grill

Duty Cycle

  • Continuous duty

Mounting

  • Left, right hand, or mid-shaft

Warranty

  • 2 years/1M cycles

Model Selection Chart

Model No.Motor (HP)GearboxShaft Size (in.)Max Door Weight (lb.)Max Door Size (ft2)
SizeRatioDRUM D400-144DRUM D525-216DRUM D800-384
PDC500-1-301/25030:11750*599395200
PDC500-1-401/25040:11750*799526200
PDC500-1-501/25050:11750*998658200
PDC750-1-303/45030:11750*900593350
PDC750-1-403/45040:11750*1200791350
PDC750-1-503/45050:11750*1500989350
PDC750-1-603/46360:11750*1500*1185350
PDC750-1.25-303/47530:11.25N/A**899593350
PDC750-1.25-403/47540:11.25N/A**1200791350
PDC750-1.25-503/47550:11.25N/A**1499988350
PDC750-1.25-603/47560:11.25N/A**1500*1186350
PDC1000-1.25-3017530:11.25N/A**1199791500
PDC1000-1.25-4017540:11.25N/A**1500*1054500
PDC1000-1.25-5017550:11.25N/A**1500*1318500
PDC1000-1.25-6017560:11.25N/A**1500*1581500
Note: Maximum door weight based on counter balanced standard lift sectional door drum capacities. Operator lift capacity exceeds drum capacity.
*Maximum allowable weight for this drum.
**DRUM D400-144 is only available in 1" shaft.

Gallery


What's Included

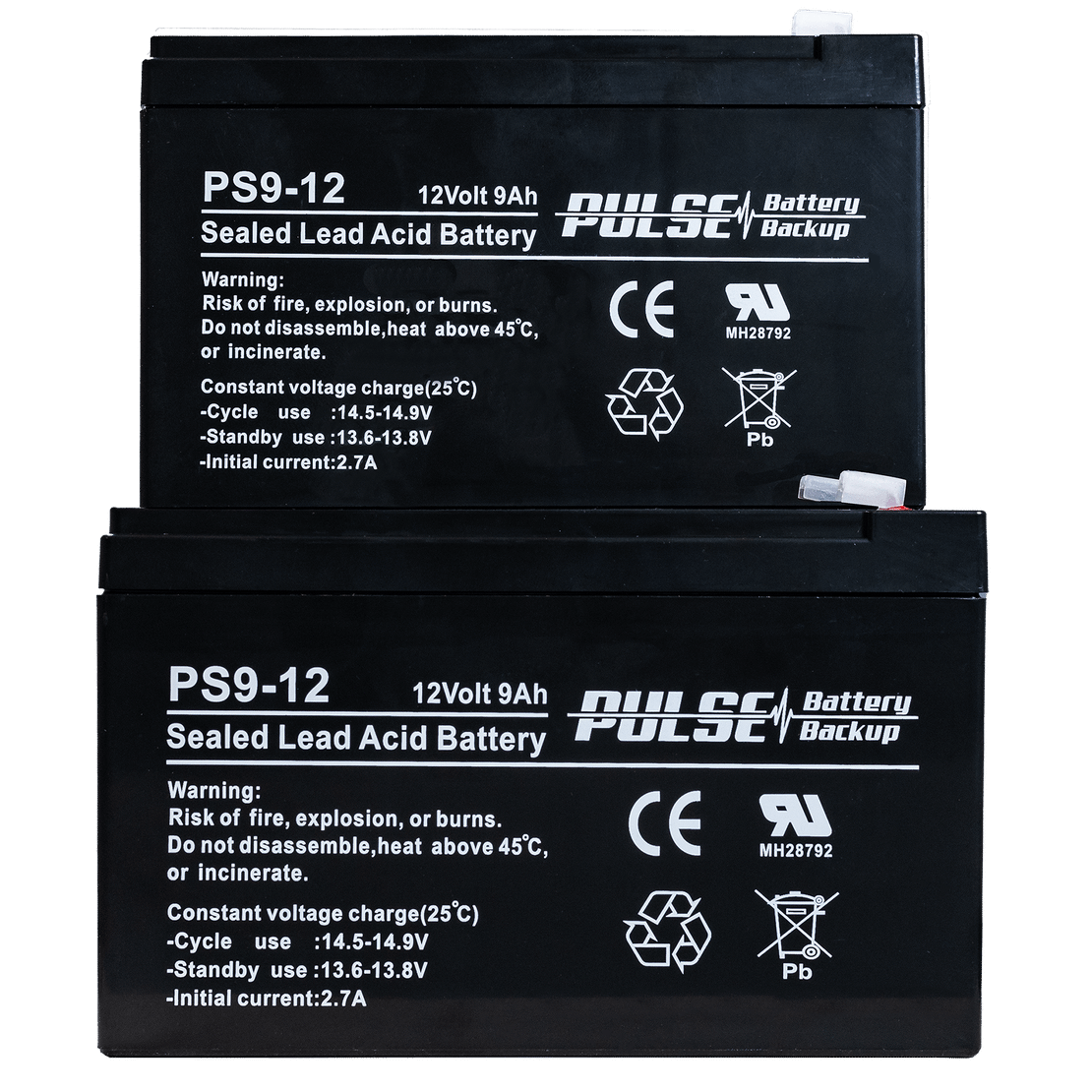

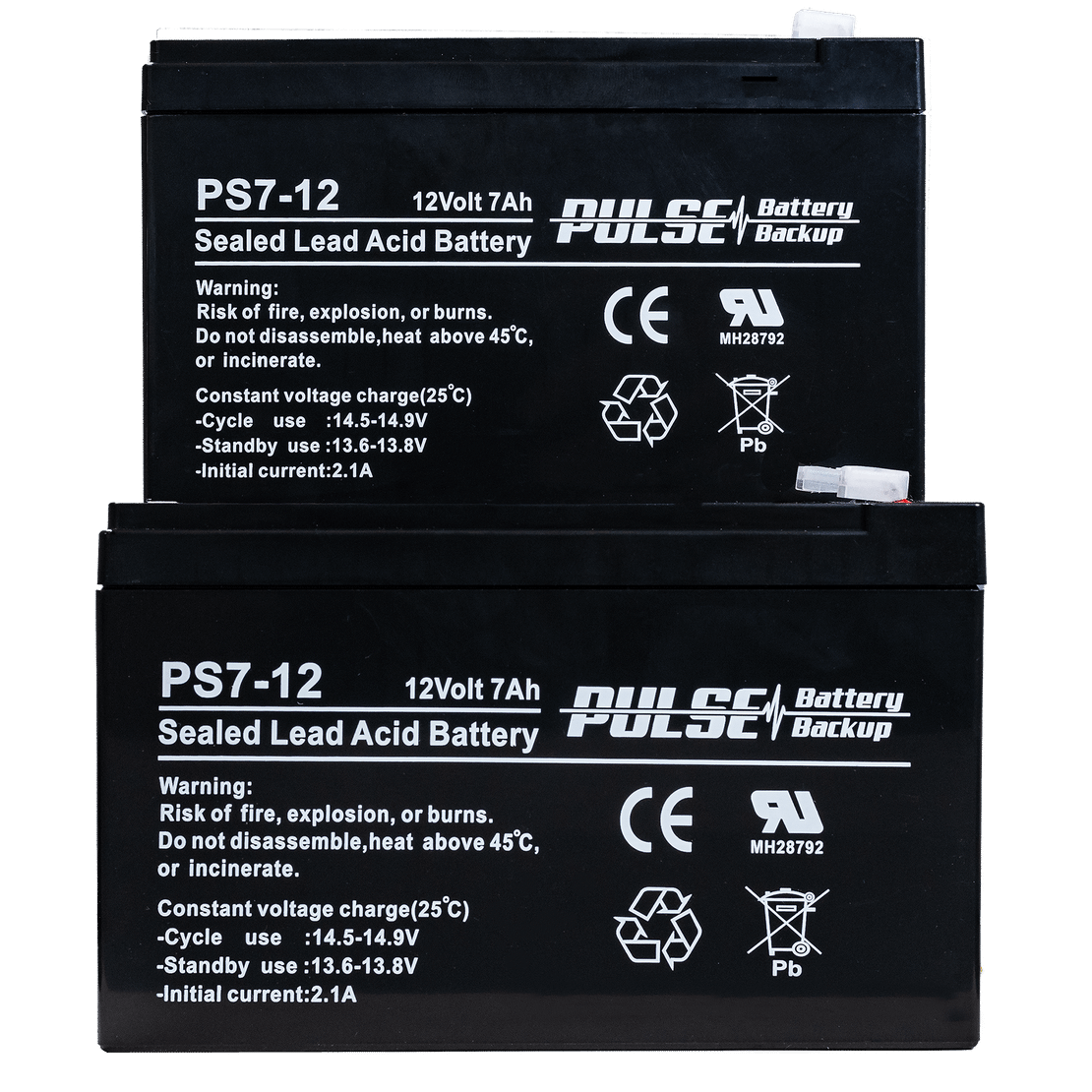

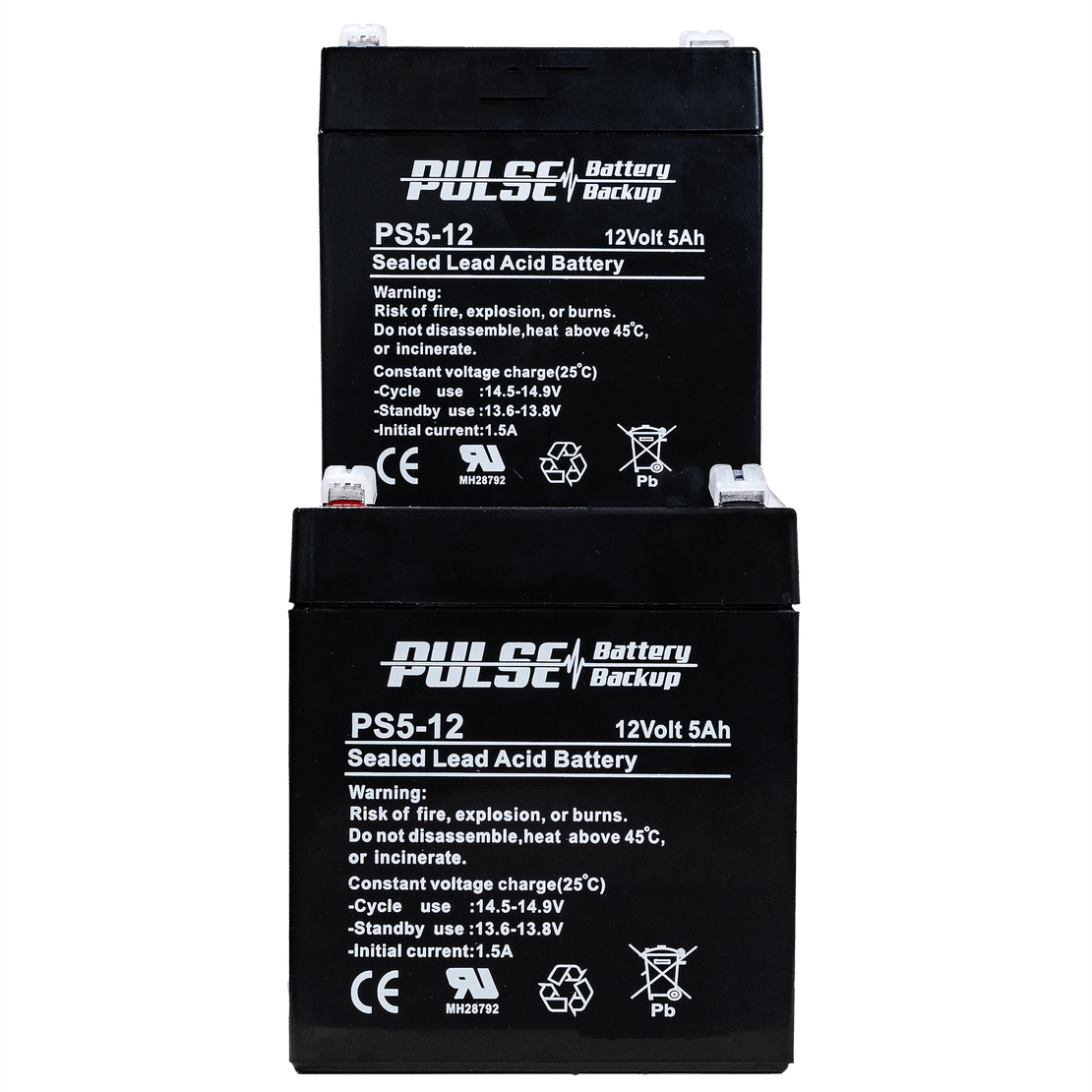

PULSE 500: Backup Batteries

PULSE 500: Backup Batteries

PULSE 750: Backup Batteries

PULSE 750: Backup Batteries

PULSE 1000: Backup Batteries

PULSE 1000: Backup Batteries

Reflective Photo Eye

Reflective Photo Eye

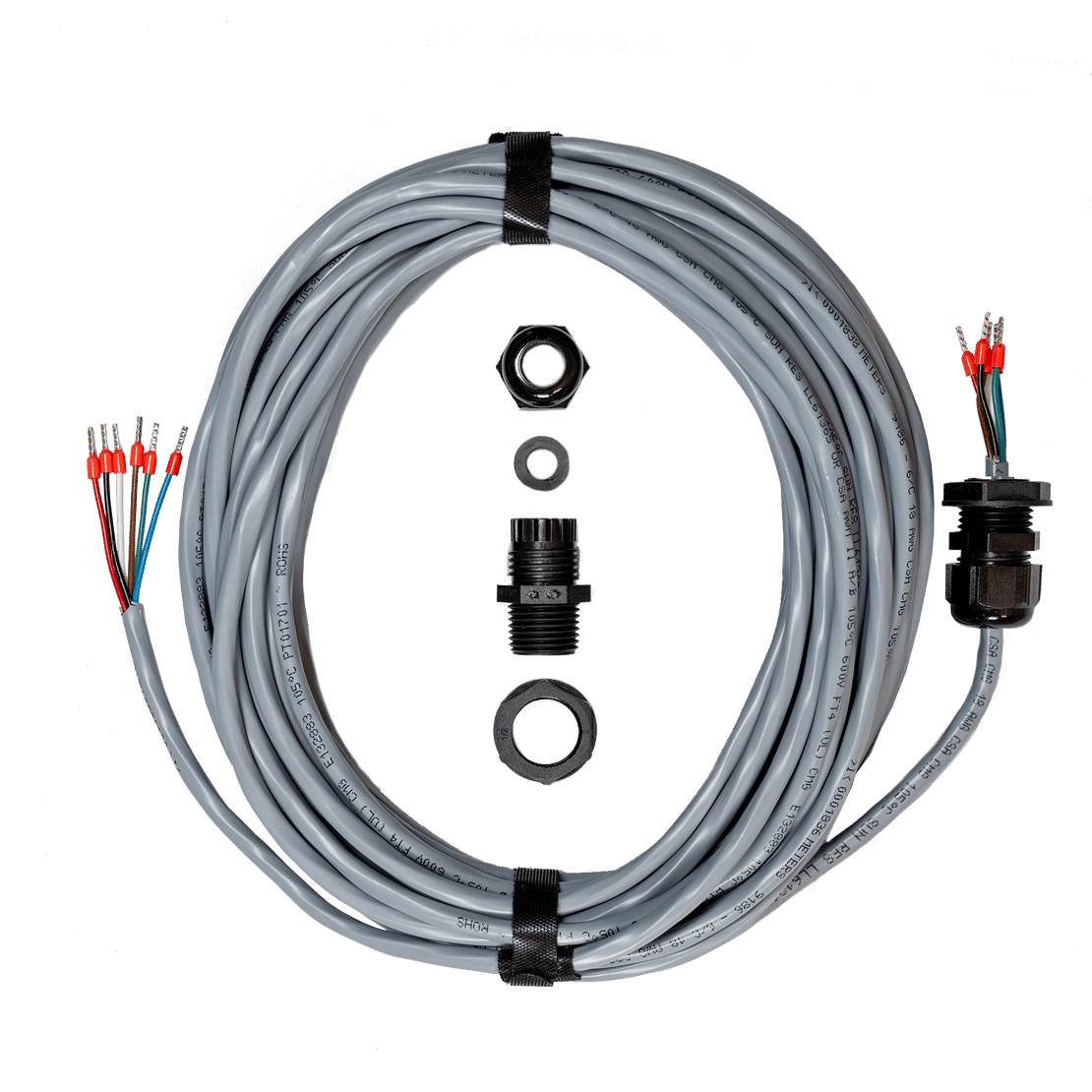

Cable Kit

Cable Kit


Installation & Support


Optional Accessories

Push Button Stations

Push Button Stations

Remote Activation Devices

Remote Activation Devices

NEMA 4X Through-Beam Sensors

NEMA 4X Through-Beam Sensors

LED Stop & Go Traffic Lights

LED Stop & Go Traffic Lights
